PPR Pipe Making Machine/ Flexible Pipe Making Machines/PVC Pipe Extrusion line

PPR Pipe Making Machine/ Flexible Pipe Making Machines/PVC Pipe Extrusion line

My company production of PPR Pipe Making Machine/ Flexible Pipe Making Machines/PVC Pipe Extrusion line, according to the size of diameter of PE pipes to select different types of extrusion machine, extrusion, cooling and sizing, traction, cutting into an organic whole, the development of a complete large-diameter PE pipe equipment automatic production line, from incoming material to the finished product of the full automatic control.

The design concept of the PPR Pipe Making Machine/ Flexible Pipe Making Machines/PVC Pipe Extrusion line is: on the basis of high speed, high yield extrusion, low temperature plasticizing, to ensure high quality PP, PE pipe extrusion.Achieve stable traction device.Production of high quality pipe, high speed extrusion, high efficiency plasticizing, special Siemens PLC control device, to ensure the stability of production.

Composition of production line

The PPR Pipe Making Machine/ Flexible Pipe Making Machines/PVC Pipe Extrusion line is characterized by beautiful appearance, high degree of automation and stable and reliable production.

PPR Pipe Making Machine/ Flexible Pipe Making Machines/PVC Pipe Extrusion line

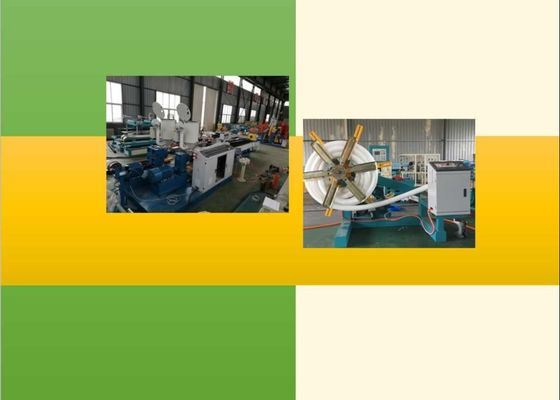

PPR Pipe Making Machine/ Flexible Pipe Making Machines/PVC Pipe Extrusion line is specially designed for the extrusion of PE raw materials, the screw adopts screen block type structure, the barrel has a unique groove structure.These new designs can increase the plasticizing and mixing effect of the extrusion pipe, equipped with low noise fan, ceramic heating ring heating, high speed helical gear reducer with hard tooth surface, intelligent temperature control meter, inverter control, so that the whole host has low temperature melting, good plasticizing and energy saving effect, etc..

Die: in order to achieve PPR Pipe Making Machine/ Flexible Pipe Making Machines/PVC Pipe Extrusion line, adopt spiral parting die, unique low pressure runner design, ensure low temperature and high plasticizing extrusion of PE, ensure stable high yield, extend the service life of the main machine.For different raw materials, multi-layer co-extrusion die can be used to reduce the cost.

Pipe marking line host

Pipe marking line host is extruded by a small single screw extruder through a composite mold.

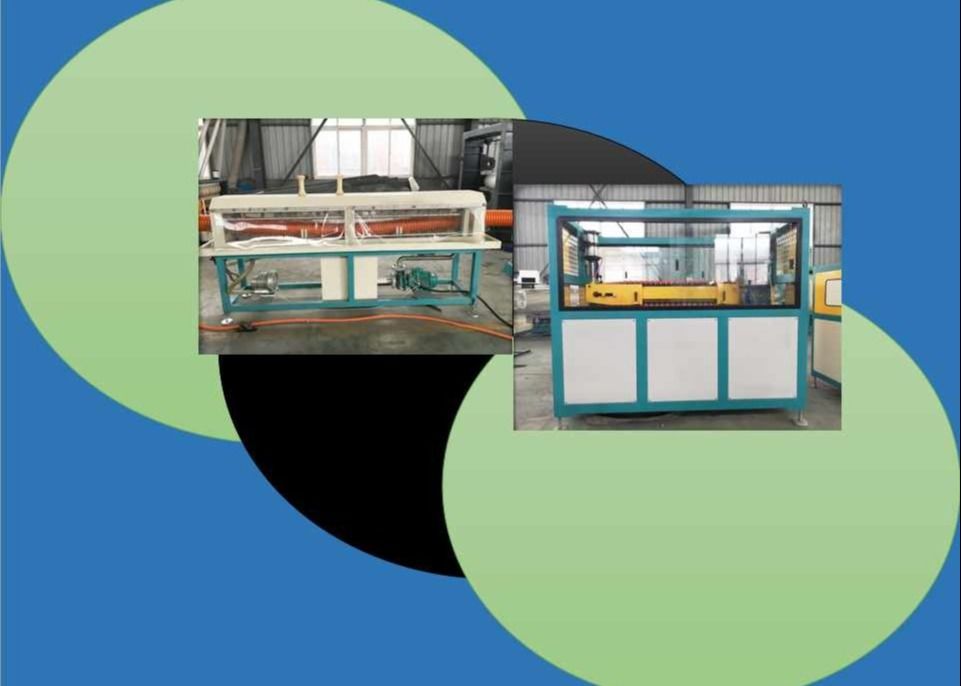

Vacuum sizing water tank: according to the size of pipe diameter, can be equipped with a multi-stage vacuum system, to ensure the quality of pipe forming and production speed.

The high pressure cooling water system with reasonable water circulation, the vacuum degree adjusting device and the automatic water temperature control system, and the high precision tin bronze sizing sleeve provide a strong guarantee for the high speed and high output of the main engine.

Spray cooling tank

The long cooling system ensures efficient cooling of pipes, and the unique piping system reduces the cooling length.

Tractor: the special integral transmission device avoids the independent transmission of different synchronization, pressure regulation system can adjust the traction, with the characteristics of small pressure, large traction, plastic PE pipe equipment, inverter control, traction speed precision stepless adjustable.

Chip free cutting machine

Adopt mature cutting-free cutting technology, high cutting precision, smooth cut without blank front, no dust.

Automatic turning frame: the whole is made of stainless steel. The intelligent control system can work perfectly with the cutting machine to achieve the automatic turning of the set pipe length.

You choice of our equipment is equal to the choice of success, my company has a professional technical team, strong after-sales support, equipment warranty for one year, after-sales response fast, excellent service, complete accessories, the company sent professional technical personnel to the door service.
